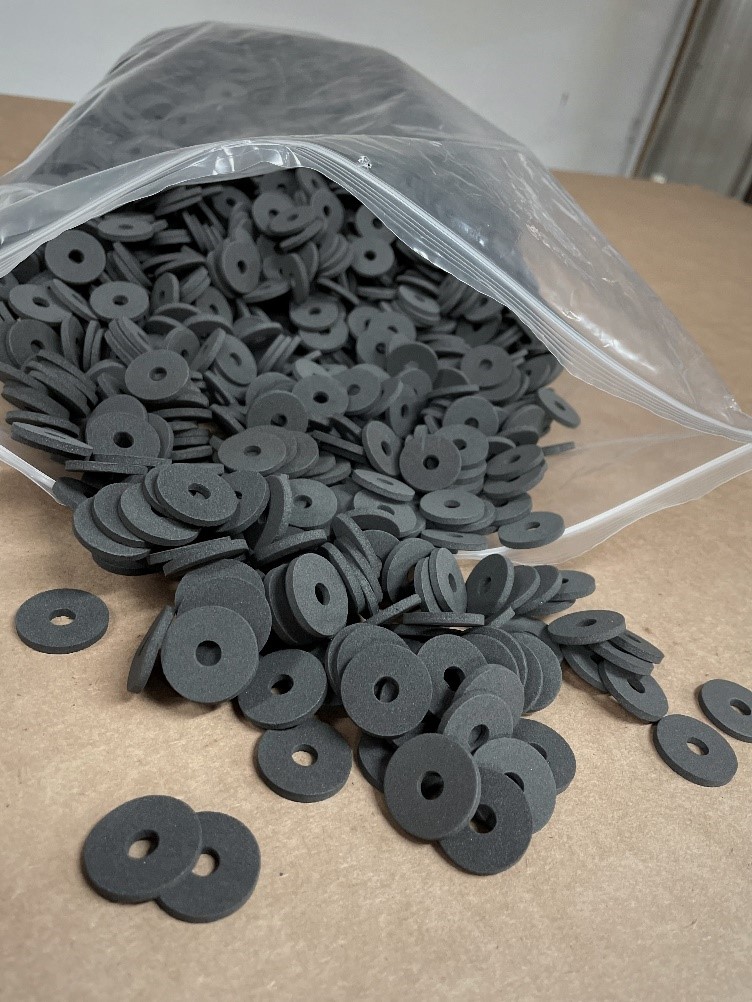

Punch Press Cut Parts

Professional Punch Press Services

DDC-Omni offers high-speed punch press cutting services for demanding applications requiring exceptional precision, consistency, and high production volumes. Our modern punch press equipment delivers clean-edged parts with tight tolerances, making it the ideal solution for long production runs and complex geometries.

What is Punch Press Cutting?

Punch press cutting uses precision-ground steel punches and dies to rapidly cut, punch, notch, or form materials. Unlike steel rule die cutting, punch press operations can achieve tighter tolerances and are optimized for high-volume production. This process is particularly effective for smaller parts, repetitive shapes, and applications requiring multiple operations in a single stroke.

Applications

• Electronic Components: EMI/RFI gaskets, thermal interface pads, and insulation washers
• Automotive Parts: High-volume gaskets, seals, and vibration dampening components
• Medical Devices: Precision gaskets and sealing components for medical equipment
• Appliance Manufacturing: Insulation pieces, mounting pads, and sealing gaskets
• Industrial Equipment: Anti-vibration mounts, shock absorbing pads, and spacers
• Telecommunications: Gaskets and seals for outdoor enclosures and equipment

Materials We Process

Our punch press equipment handles a wide range of materials:

• Rubber and elastomers (neoprene, EPDM, silicone, nitrile)
• Closed-cell foam (polyethylene, PVC, neoprene)
• Open-cell foam (polyurethane, polyether)
• Cork and cork/rubber composites
• Felt and non-woven materials
• Plastics and films
• Thin metals and foils
• Adhesive-backed materials and tapes

Punch Press Capabilities

• Part Size: From 0.125" to 24" in diameter or equivalent area
• Thickness Range: 0.005" to 0.500" thick
• Tolerances: ±0.005" to ±0.015" depending on material and size
• Production Speed: Up to 300 strokes per minute for simple geometries
• Multiple Operations: Piercing, notching, and forming in single setup
• Complex Shapes: Multiple holes, slots, and profile cuts

Advantages of Punch Press Cutting

• Tighter Tolerances: More consistent dimensions than die cutting
• Faster Production: Higher cycle rates for improved throughput
• Cost Effective: Lower piece cost for high-volume runs
• Clean Edges: Superior edge quality with minimal material distortion
• Repeatability: Excellent part-to-part consistency
• Multi-Operation: Complete multiple operations in one press cycle

Quality & Certifications

Our punch press operations are conducted under ISO 9001:2015 certified quality management systems. We utilize precision measuring equipment and maintain detailed inspection records. Statistical process control ensures consistent quality throughout production runs, with capability studies available upon request.

Why Choose DDC-Omni for Punch Press Cutting?

• Over 70 years of manufacturing experience
• Flexible capacity for volumes from thousands to millions
• Rapid tooling turnaround for faster time-to-market
• Inventory management and JIT delivery programs
